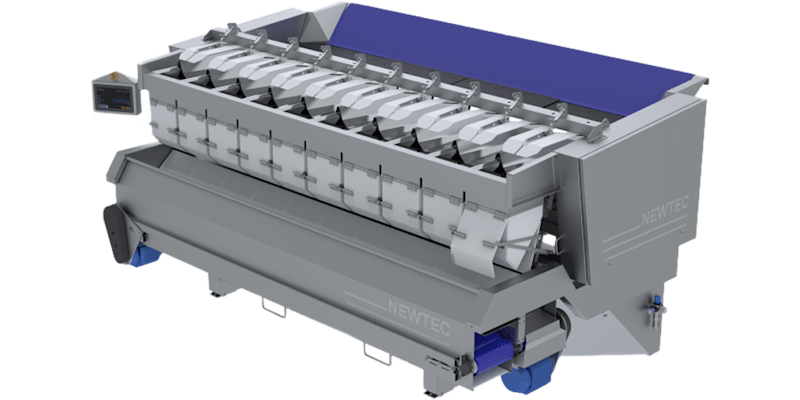

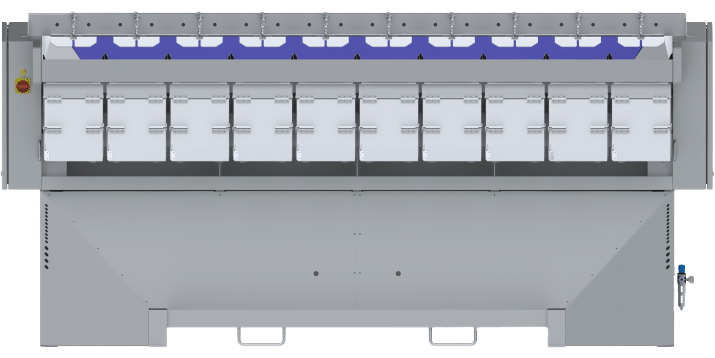

Newtec 4010W1 Automatic Bulk Weigher
Newtec provides the highest quality assurance in the industry and is servicing a broad range of customers from small family packing houses to the largest industrial factories in the world. Very High Speed for large and extra large products.
Features
- High weighing accuracy: Typical giveaway: less than 0.2%
- High speed – up to 20 portions/min. at 25 kg
- Extra large weigh heads for extremely large products and portions
- WebServices enabled for remote servicing and for capturing production data
- MachineLink enabled
- from only one touchscreen, either on our Weighing Machine or Check Point, recipe change and start/stop for both machines is possible
Applications
| Beets | |
| Citrus | |
| Onions | |
| Potatoes | |
| Sweet Potatoes | |
| Turnips |
Specifications
| No. of Weigh Heads | 10 |
| Width of Heigh Heads | 245 mm |
| Product Weight | 1.00 - 25.00 kg |
| Speed | Up to 20 portions/min. on 50-lb portions |
| Product Size | Ø: 20 - 200 mm, L: 20 - 230 mm |
| Dimensions Without Portion Collection System | W: 3160 mm, H: 1473 mm, D: 1637 mm |
| Air Consumption and Pressure | 200 NL/min., 6 bar (0.6Mpa) |
| Electricity Consumption | 3×230 VAC or 3×400 VAC (N) PE 50/60 Hz 3-6 kW |
