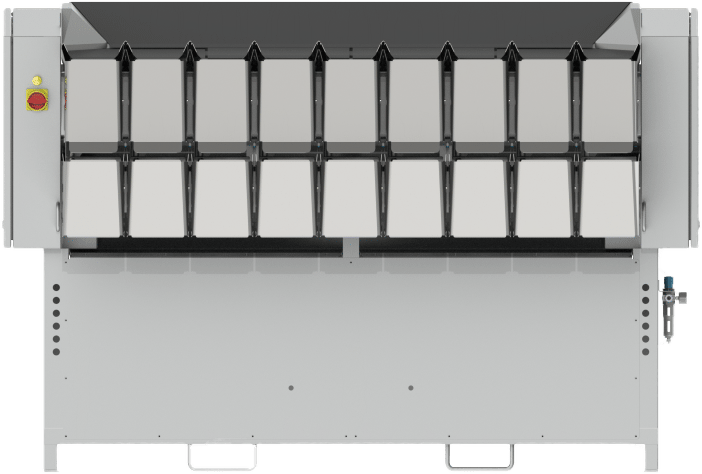

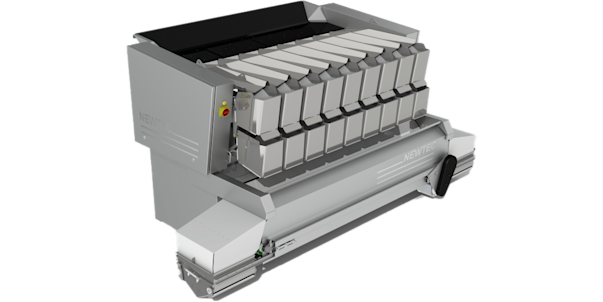

Newtec 4009XB2 Weigher
Newtec provides the highest quality assurance in the industry and is servicing a broad range of customers from small family packing houses to the largest industrial factories in the world.
Features
- High weighing accuracy: Typical giveaway: less than 0.2%
- High speed – up to 50 portions/min. at 2.5 kg
- Flexible system to handle large as well as small fruits and vegetables
- Gentle product handling with low drop height
- Quick dismantling and assembly of weigh pans
- Easy access for cleaning and service
- Small foot print
- WebServices enabled for remote servicing and for capturing production data
- MachineLink enabled – from only one touchscreen, either on our Weighing Machine or Check Point, recipe change and start/stop for both machines is possible
Applications
| Citrus | |
| Onions | |
| Potatoes | |
| Sweet Potatoes | |
| Turnips |
Specifications
| No. of Weigh Heads | 9 |
| Width of Heigh Heads | 180 mm |
| Product Weight | 1.00 - 25.00 kg |
| Speed | Up to 55 portions/min. |
| Product Size | Ø: 20 - 170 mm, L: 20 - 230 mm |
| Dimensions Without Portion Collection System | W: 2160 mm, H: 1464 mm, D: 1484 mm |
| Air Consumption and Pressure | 65 NL/min., 6 bar (0.6Mpa) |
| Electricity Consumption | 3×230 VAC or 3×400 VAC (N) PE 50/60 Hz 3-6 kW |
